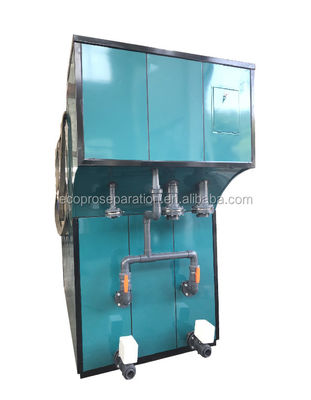

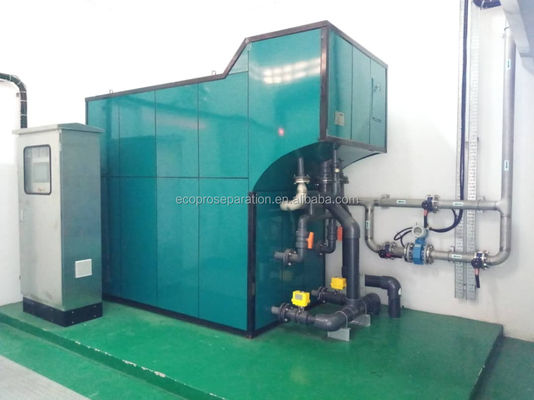

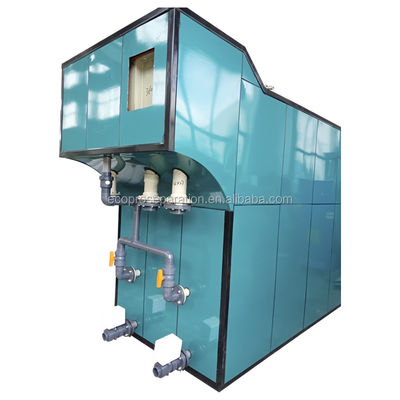

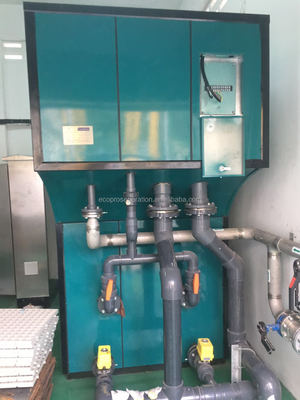

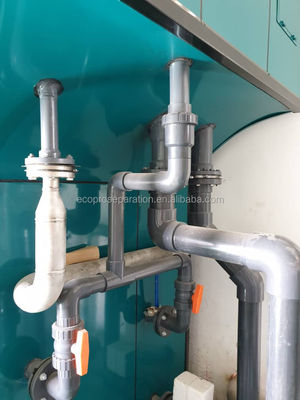

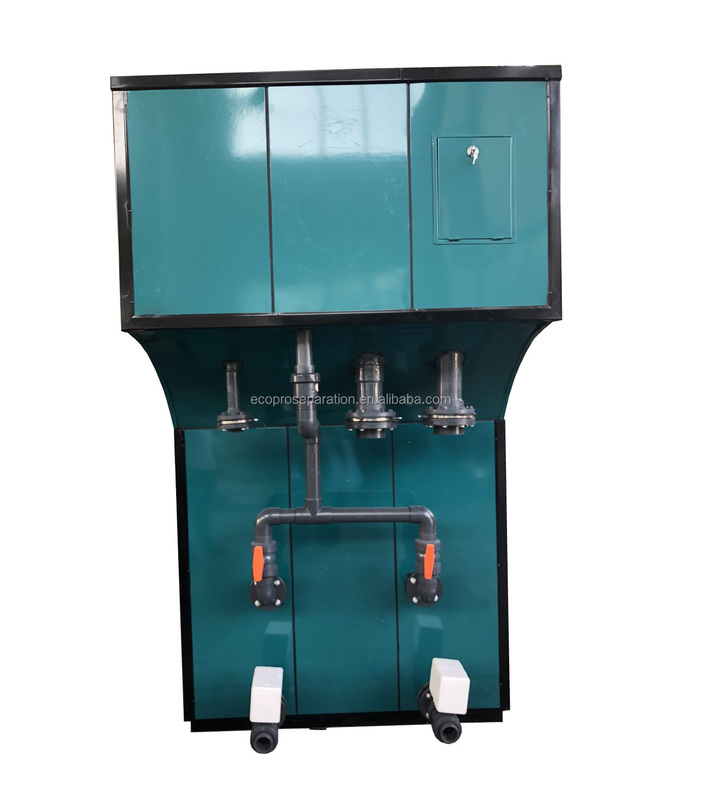

40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW

40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW
40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW

大画像 :  40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW

商品の詳細:
起源の場所: 中国上海
ブランド名: ECOPRO
お支払配送条件:
最小注文数量: 1
価格: $38,627
連絡先
詳細製品概要
生産性: 40m3/h 重さ: 2298kg
処理型: 濾過 力: 3 kW、30 kW、20 kW
電圧: 220 V、380 V、110 V 容量: 40m3/h
電極重量: 11500のkg 空の重量: 3500 kg
操作重量: 31000kg 処理能力: 1m3/h
消費電力: 3kw/h 寸法: 1000*650*1500 mm
電極重量: 650 kg 空の重量: 400 kg
操作重量: 1500 kg
ハイライト:

40m3/h electrocoagulation wastewater system

,

electrocoagulation system 3-30 kW

,

industrial wastewater treatment electrocoagulation

High Voltage Pulsed Electrocoagulation Equipment for Waste Water Treatment
Our electrocoagulation system is an advanced wastewater treatment solution that utilizes metal hydroxide produced by soluble metal anodes during flocculation to effectively remove contaminants from water. The system typically uses aluminum, iron, or other readily available metals as anode materials.
40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 0 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 1
Technical Specifications
Parameter Value
Treating Capacity 1m³/h
Power Consumption 3kw/h
Dimension 1000×650×1500mm
Electrode Weight 650kg
Empty Weight 400kg
Operation Weight 1500kg
40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 2 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 3 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 4 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 5
Electrocoagulation System Principle
Fe → Fe²⁺ + 2e
2OH⁻ → 2[O] + 2e → O₂ + 2e
2H⁺ + 2e → 2[H] → H₂
The electrochemical process generates nascent oxygen with strong oxidation capabilities similar to UV, H₂O₂, and O₃. Simultaneously, nascent hydrogen breaks chemical bonds, reduces COD, and degrades chromophore functional groups. These oxidation and reduction reactions continuously occur on the electrode plates.
System Features
  • Wide power supply adaptability: Operates within 220V-480VAC range
  • Safe and convenient: Embedded isolated voltage circuit ensures electrical safety with multiple protection mechanisms (phase loss, overload, overcurrent, overvoltage, zero voltage)
  • Automatic control: Detects ion state in water to automatically adjust current and voltage
  • Energy efficient: Utilizes Fe(OH)₂ and Fe(OH)₃ as natural coagulants, eliminating need for polymer additives
40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 6 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 7
Manufacturer Information
Shanghai Ecopro Environmental Engineering Co., Ltd., established in 2017, specializes in comprehensive water and wastewater treatment equipment and separation services. As a professional environmental engineering company, we provide industry-leading equipment, services, and systematic solutions including static screens, rotary drum screens, polymer dosing systems, DAF systems, electrochemistry systems, screw presses, plate filter presses, sludge dryers, Mutag Biochips, sodium hypochlorite generators, and various pumps.
40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 8 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 9 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 10 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 11 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 12 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 13
Product Packaging
40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 14 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 15 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 16 40m3/h Electrocoagulation System for Wastewater Treatment 3-30 kW 17
