Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment

Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment
Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment

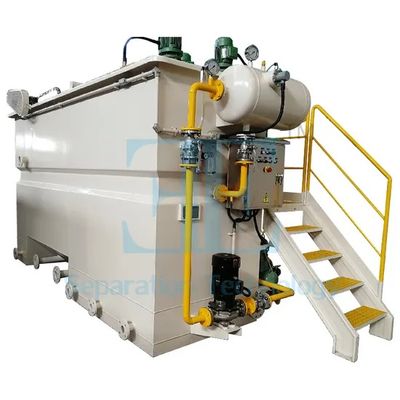

大画像 :  Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment

商品の詳細:
お支払配送条件:
最小注文数量: 1
価格: 13608
連絡先
詳細製品概要
モデル番号: daf 容量: 5m3/h
空気圧縮機の電源: 0.55kW 溶解したポンプパワー: 3kw
スキマーパワー: 0.1kw 凝固 動かす 力: 0.55kW
フロッキュレーション・アギュレーターのパワー: 0.55kW pH撹拌機の電力: 0.55kW
寸法: 3600*1700*1850mm 生産能力: 100000/WEEK
SS 内容: ppm または mg/L オイル含有量: ppm または mg/L
pH範囲: 6〜9 BOD 内容: ppm または mg/L
COD 内容: ppm または mg/L
ハイライト:

0.55kw Coagulate Agitator DAF System

,

0.55kw Flocculation Agitator Dissolved Air Flotation

,

0.55kw pH Agitator Wastewater Treatment System

Ecopro The Dissolved Air Flotation Device Can Operate Continuously to Effectively Remove Grease and Suspended Particles in Sewage Treatment
DAF System and Dissolved Air Flotation for Waste Water Treatment
Dissolved Air Flotation is a water treatment process that clarifies wastewaters (or other waters) by the removal of suspended matter such as oil or solids.
The removal is achieved by dissolving air in the water or wastewater under pressure and then releasing the air atmospheric pressure in a flotation tank basin. The released air forms tiny bubbles which adhere to the suspended matter causing the suspended matter to float to the surface of the water where it may then be removed by a skimming device.
DAF System Work Process
The wastewater enter RT1 (coagulation reaction tank) and RT2 (flocculation reaction tank) from the equalization tank through the lift pump, and coagulates with PAC floculates with (PAM) respectively form the flocs.
Then the wastewater and dissolved water enter the reaction zone of the DAF tank, and the microbubbles and flocs in the dissolved water are mixed and adhered to form solid particles, which the density less than water, and float up to the surface of the DAF tank.
Under the action of buoyancy, scum is scraped to the slag tank. The clean water is collected down to the collect tank through the water collecting pipe, and most of the outer water is discharged (or into the next process), and a small part of the water is recirculated to form the dissolved water.
Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment 0
DAF System Fabricate Process
Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment 1
Technical Data
Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment 2
DAF System Features
  • Micro bubbles generating
  • Subsurface capture
  • Automatic slagging controlled by liquid level
  • Non-clogging releasing with high efficiency
Application of DAF System
  • Municipal Sewage
  • Slaughter House
  • Metallurgical Industry Wastewater
  • Spraying Sewage
  • Printing & Dyeing Sewage
  • Metal-Processing Sewage
  • Mining Stone Wastewater
  • Electronic Sewage
More Details about DAF System
Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment 3
How to select right model?
Wastewater type (dairy wastewater, car washing wastewater, slaughter house wastewater, food wastewater, river water...)
  • SS content (ppm or mg/L)
  • Oil & Grease & Fat & FOG content (ppm or mg/L)
  • PH (6~9 is preferred. Otherwise consider PH adjust tank before DAF tank, also have to consider the material of the DAF because of Corrosive substance)
  • BOD (ppm or mg/L)
  • COD (ppm or mg/L)
Ways of Packing
Ecopro DAF System Dissolved Air Flotation with 0.55kw Coagulate Agitator, 0.55kw Flocculation Agitator, and 0.55kw pH Agitator for Wastewater Treatment 4
