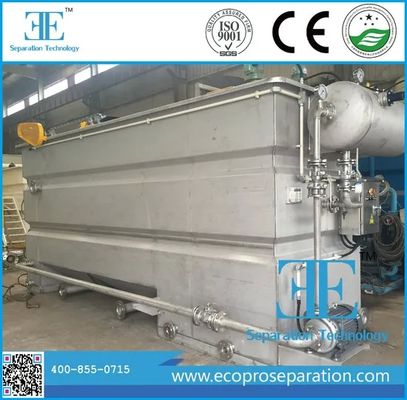

Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment

Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment
Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment

大画像 :  Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment

商品の詳細:
お支払配送条件:
最小注文数量: 1
価格: 13608
連絡先
詳細製品概要
モデル番号: DAF-010 容量: 5m3/h
エアコンプレッサー: 0.55kW 溶解したポンプパワー: 3kw
スキマーパワー: 0.1kw 凝固 動かす 力: 0.55kW
フロッキュレーション・アギュレーターのパワー: 0.55kW pH撹拌機の電力: 0.55kW
寸法: 3600*1700*1850mm 生産能力: 100/week
溶解空気効率: 95％ スカム水分含有量: 98%未満
好ましいpH範囲: 6〜9 SS 内容: ppm または mg/L
オイルとグリースの含有量: ppm または mg/L
ハイライト:

5m3/H Capacity DAF System

,

0.55kw Air Compressor Wastewater Treatment Machine

,

3kw Dissolved Pump Power Dissolved Air Flotation

Ecopro DAF System Wastewater Dissolved Air Flotation Machine
DAF System for Wastewater Treatment
Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment 0
Dissolved Air Flotation (DAF) is a water treatment process that clarifies wastewaters by removing suspended matter such as oil or solids. The process involves dissolving air in water under pressure and releasing it at atmospheric pressure in a flotation tank, creating microbubbles that adhere to suspended particles and float them to the surface for removal.
Working Process
Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment 1
  1. Wastewater enters coagulation and flocculation reaction tanks where chemicals (PAC and PAM) form flocs
  2. Water and dissolved air enter the DAF tank reaction zone
  3. Microbubbles adhere to flocs, forming particles less dense than water
  4. Floating scum is scraped to the slag tank
  5. Clean water is collected and either discharged or recirculated
System Advantages
Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment 2
  • High efficiency dissolved air system (≥95% efficiency)
  • Automatic liquid level control with scum moisture content <98%
  • Non-clogging design for easy maintenance
  • Stable treatment efficiency with automatic control
  • Compact footprint with high effluent quality
Specifications
Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment 3
Model Selection Criteria
  • Wastewater type (dairy, car wash, slaughterhouse, food processing, etc.)
  • Suspended solids content (ppm or mg/L)
  • Oil & grease content (ppm or mg/L)
  • pH level (6-9 preferred)
  • BOD and COD levels (ppm or mg/L)
Applications
Municipal sewage, slaughterhouses, metallurgical industry wastewater, spraying sewage, printing & dyeing sewage, metal-processing sewage, mining stone wastewater, electronic sewage.
Reference Project
Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment 4
Company Profile
Ecopro 5m3/H Capacity DAF System with 0.55kw Air Compressor and 3kw Dissolved Pump Power for Wastewater Treatment 5
Shanghai Ecopro Environmental Engineering Co., Ltd. specializes in water and wastewater treatment equipment and separation services. We provide comprehensive environmental solutions including static screens, rotary drum screens, lamella clarifiers, dissolved air flotation systems, electrochemistry systems, sludge treatment equipment, and various pumps.
Contact Information
Shanghai Ecopro Environmental Engineering Co., Ltd
